Product Information ( OCT | SBJ | 18455 )

Code	SBJ 18455
Name	OCT
Brand	Carl Zeiss
Model	Cirrus 4000 HD OCT
Endorsement number
Status	Sold
Price	Login Make a request

Comment

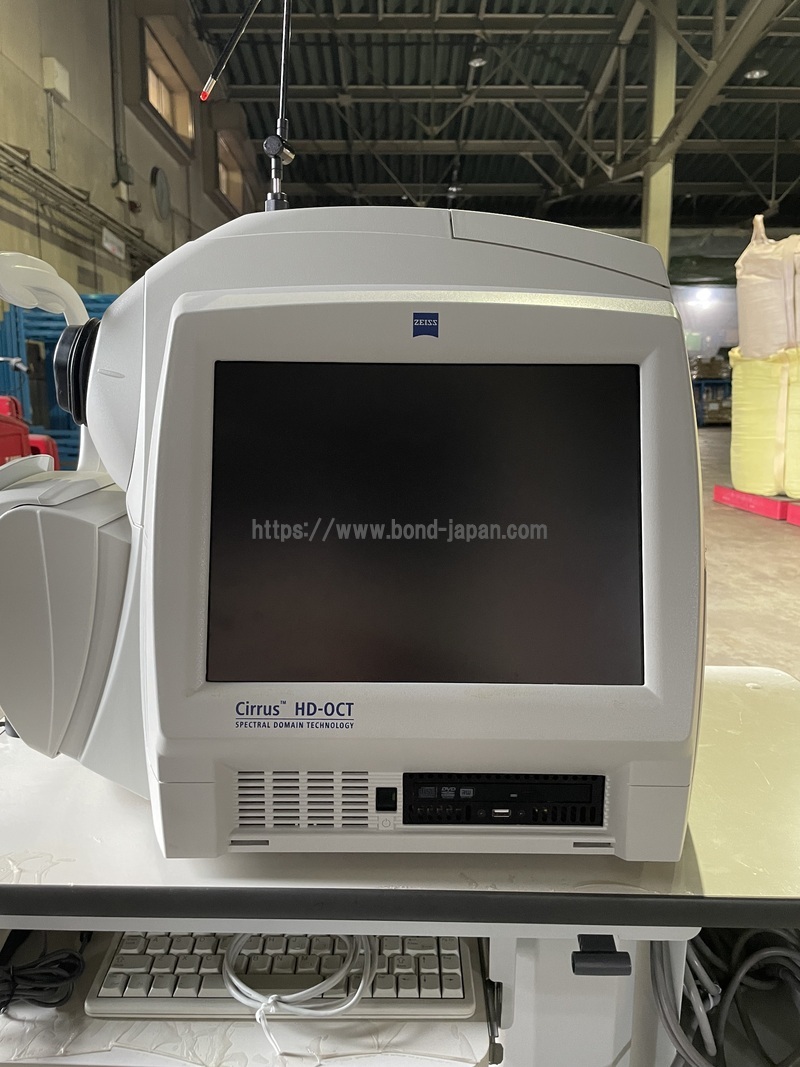

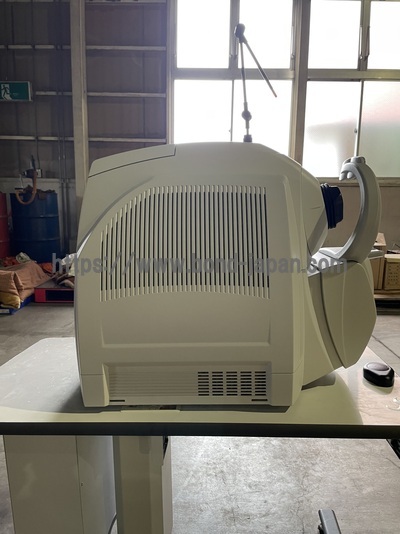

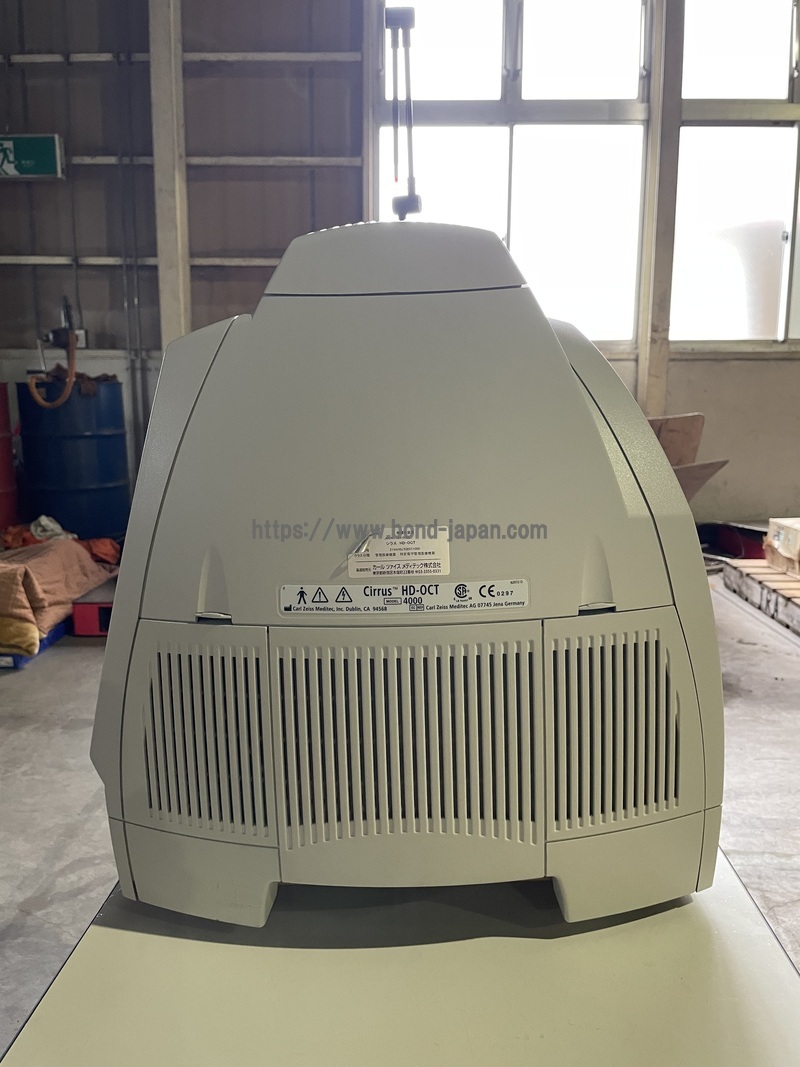

The ZEISS Cirrus HD-OCT 4000 (Cirrus HD-OCT or Cirrus) enable examination of the posterior and anterior of the eye at an extremely fine spatial scale, without surgical biopsy or even any contact with the eye. The Cirrus HD-OCT builds on and refines the retinal imaging technology first introduced with the ZEISS Stratus OCT HD-OCT stands for "high-definition optical coherence tomography."

Specification & Options

*Weight: 38kg (83 lbs) *Dimensions: 65L x 44W x 53H (cm) * HD-OCT Imaging Methodology: Spectral Domain OCT Optical Source: superluminescent diode (SLD), 840 nm Optical Power: < 725 μW at the cornea Scan Speed: 27,000 A-scans per second A-Scan depth: 2.0 mm (in tissue), 1024 points Axial resolution: 5 μm (in tissue) Transverse resolution: 15 μm (in tissue) *Fundus Imaging Methodology: Line scanning ophthalmoscope Live Fundus Image: During alignment and during OCT scan Optical Source: Superluminescent diode (SLD), 750 nm Optical Power: < 1.5 mW at the cornea Field of View: 36 degrees W x 30 degrees H Frame rate: >20 Hz Transverse resolution: 25 μm (in tissue) *Iris Imaging Methodology: CCD Camera Resolution: 1280 x 1024 Live iris image: During alignment

Configuration

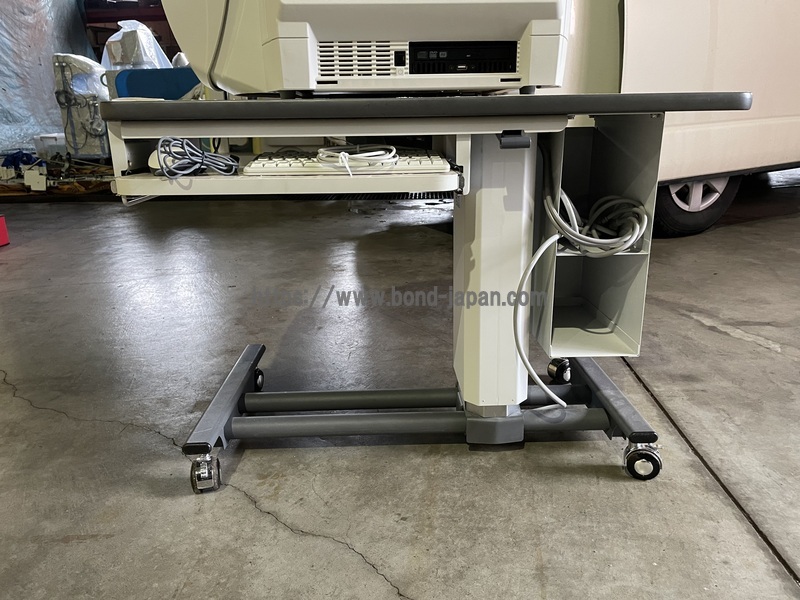

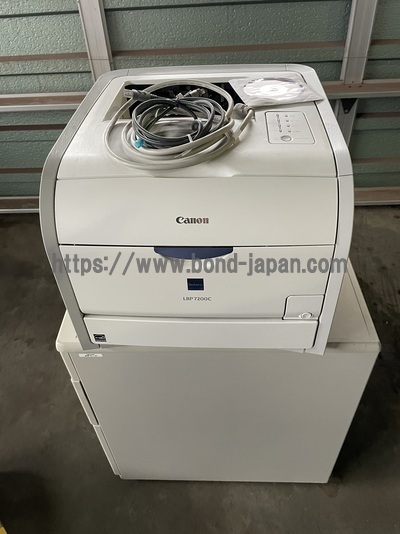

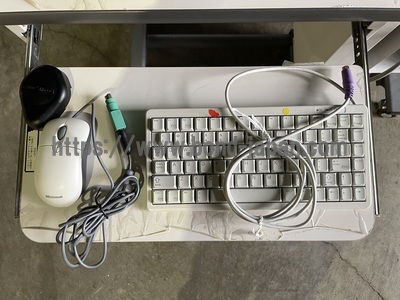

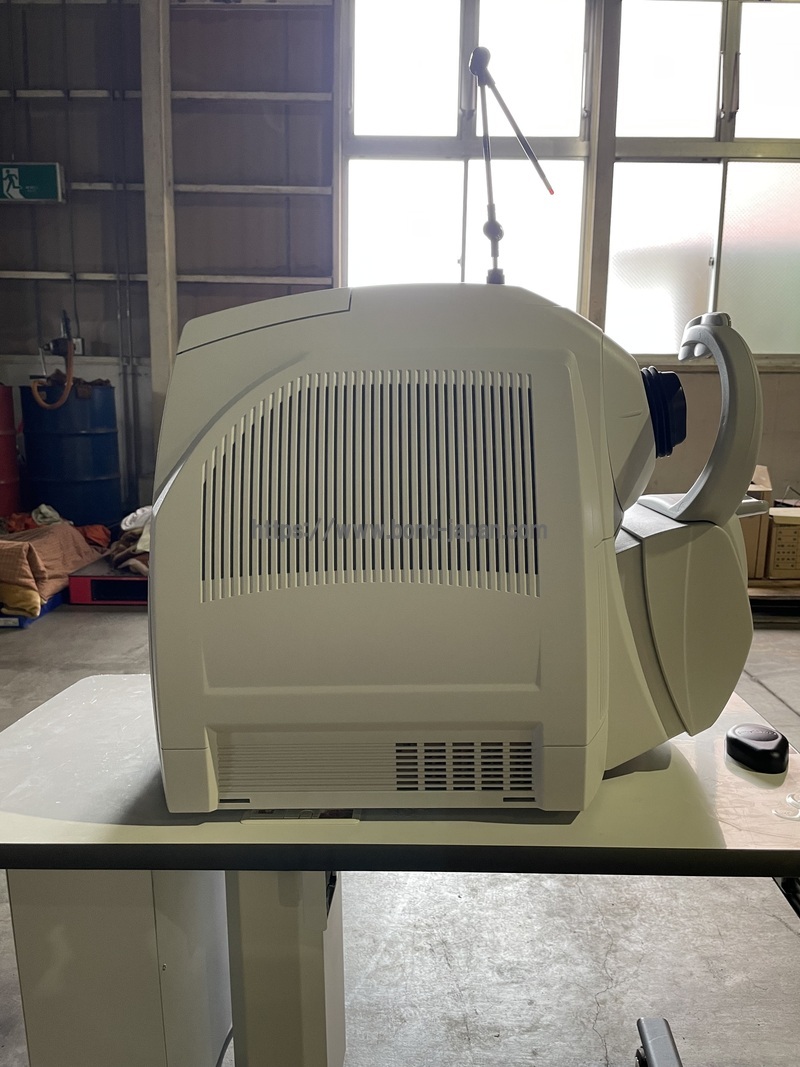

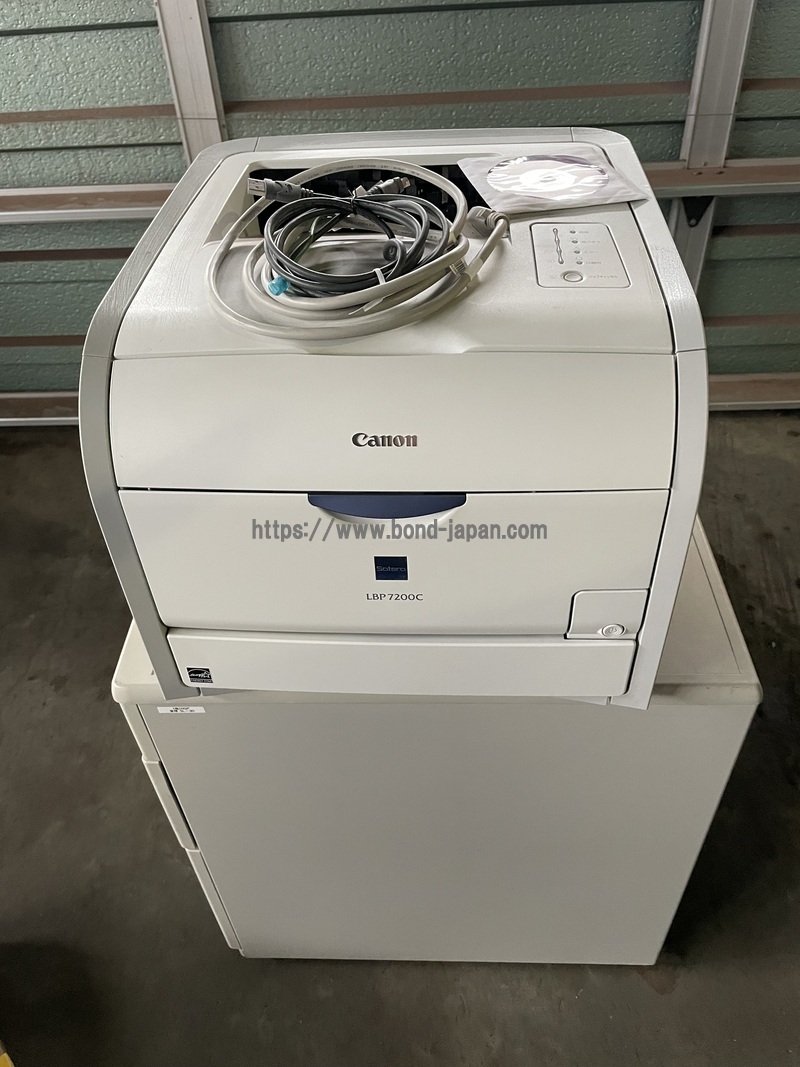

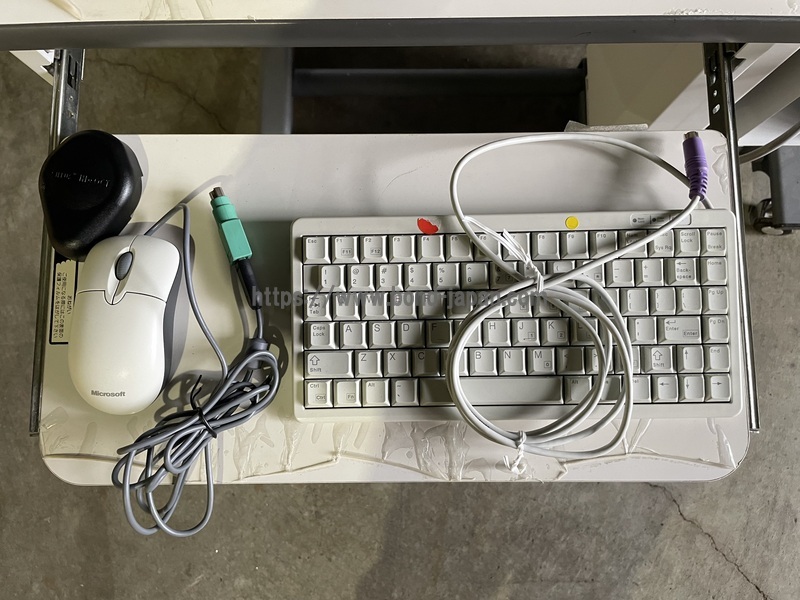

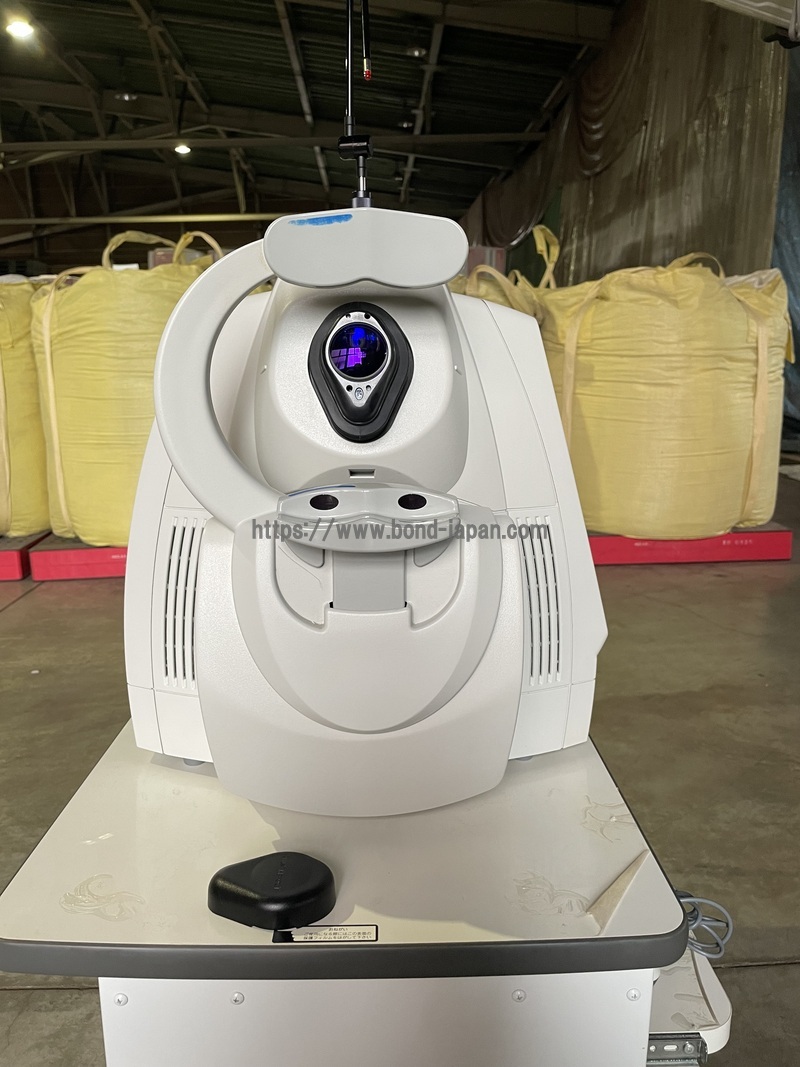

You will get what pictured.

Condition

Patient ready
